#include <AsciiCmdUtilities.h>

Public Member Functions
	CAsciiCmdUtilities (void)
	~CAsciiCmdUtilities (void)
std::string	MakeUpper (std::string myString)
	Forces all characters to uppercase. (All DPP command must be in upper case.)
std::string	RemWhitespace (std::string strLine)
	Removes Whitespace characters from a command string.
std::string	GetDP5CfgStr (std::string strFilename)
	Reads a DPP configuration from a file.
std::string	GetDP5ScaStr (std::string strFilename)
	Reads a SCA configuration from a file.
std::string	CreateResTestReadBackCmd (bool bSendCoarseFineGain, int DppType)
std::string	CreateFullReadBackCmd (bool PC5_PRESENT, int DppType, bool isDP5_RevDxGains, unsigned char DPP_ECO)
	Generates a configuration readback command from a list of all commands.
std::string	CreateFullReadBackCmdMCA8000D (int DppType)
	Generates a configuration readback command from a list of all commands.
std::string	RemoveCmd (std::string strCmd, std::string strCfgData)
	Remove a specified command from the command stream.
std::string	RemoveCmdByDeviceType (std::string strCfgDataIn, bool PC5_PRESENT, int DppType, bool isDP5_RevDxGains, unsigned char DPP_ECO)
	Remove illegal commands from the command stream by device type.
std::string	RemoveCmdByDeviceTypeDP5DxK (std::string strCfgDataIn, bool PC5_PRESENT, int DppType)
	Remove illegal commands from the command stream by device type.
std::string	Remove_MCA8000D_Cmds (std::string strCfgDataIn, int DppType)
std::string	ReplaceCmdText (std::string strInTextIn, std::string strFrom, std::string strTo)
int	GetCmdChunk (std::string strCmd)
bool	CopyAsciiData (unsigned char Data[], string strCfg, long lLen)
	Force string to ASCII bytes.

Detailed Description

Definition at line 18 of file AsciiCmdUtilities.h.

Constructor & Destructor Documentation

CAsciiCmdUtilities::CAsciiCmdUtilities ( void )

Definition at line 3 of file AsciiCmdUtilities.cpp.

CAsciiCmdUtilities::~CAsciiCmdUtilities ( void )

Definition at line 7 of file AsciiCmdUtilities.cpp.

Member Function Documentation

bool CAsciiCmdUtilities::CopyAsciiData	(	unsigned char	Data[],
		string	strCfg,
		long	lLen
	)

Force string to ASCII bytes.

Definition at line 578 of file AsciiCmdUtilities.cpp.

Here is the caller graph for this function:

string CAsciiCmdUtilities::CreateFullReadBackCmd	(	bool	PC5_PRESENT,
		int	DppType,
		bool	isDP5_RevDxGains,
		unsigned char	DPP_ECO
	)

Generates a configuration readback command from a list of all commands.

Definition at line 202 of file AsciiCmdUtilities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

string CAsciiCmdUtilities::CreateFullReadBackCmdMCA8000D ( int DppType )

Generates a configuration readback command from a list of all commands.

Definition at line 308 of file AsciiCmdUtilities.cpp.

Here is the caller graph for this function:

string CAsciiCmdUtilities::CreateResTestReadBackCmd	(	bool	bSendCoarseFineGain,
		int	DppType
	)

Definition at line 177 of file AsciiCmdUtilities.cpp.

int CAsciiCmdUtilities::GetCmdChunk ( std::string strCmd )

Definition at line 558 of file AsciiCmdUtilities.cpp.

Here is the caller graph for this function:

string CAsciiCmdUtilities::GetDP5CfgStr ( std::string strFilename )

Reads a DPP configuration from a file.

Definition at line 42 of file AsciiCmdUtilities.cpp.

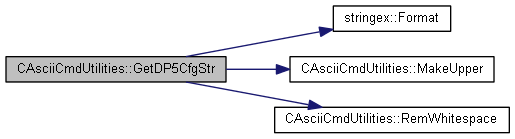

Here is the call graph for this function:

Here is the caller graph for this function:

string CAsciiCmdUtilities::GetDP5ScaStr ( std::string strFilename )

Reads a SCA configuration from a file.

Definition at line 97 of file AsciiCmdUtilities.cpp.

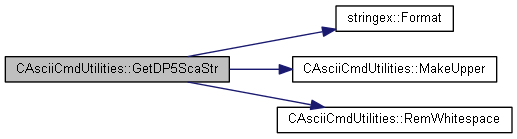

Here is the call graph for this function:

string CAsciiCmdUtilities::MakeUpper ( std::string myString )

Forces all characters to uppercase. (All DPP command must be in upper case.)

Definition at line 11 of file AsciiCmdUtilities.cpp.

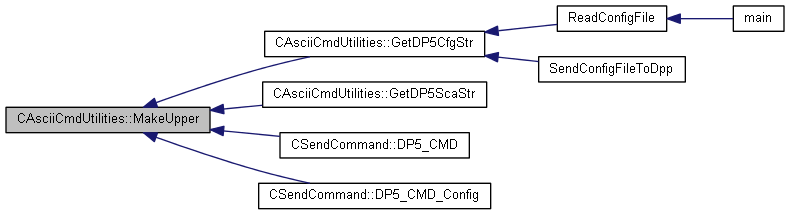

Here is the caller graph for this function:

string CAsciiCmdUtilities::Remove_MCA8000D_Cmds	(	std::string	strCfgDataIn,
		int	DppType
	)

Definition at line 482 of file AsciiCmdUtilities.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

string CAsciiCmdUtilities::RemoveCmd	(	std::string	strCmd,
		std::string	strCfgData
	)

Remove a specified command from the command stream.

Definition at line 351 of file AsciiCmdUtilities.cpp.

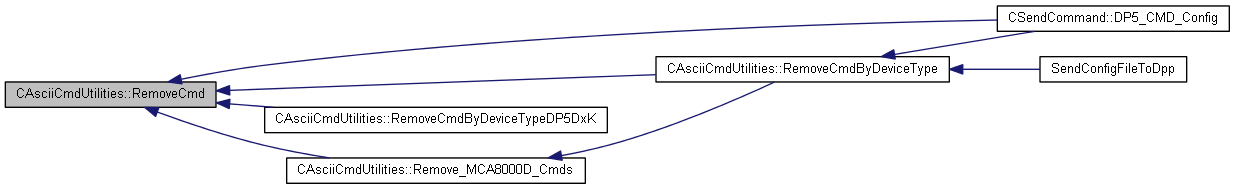

Here is the caller graph for this function:

string CAsciiCmdUtilities::RemoveCmdByDeviceType	(	std::string	strCfgDataIn,
		bool	PC5_PRESENT,
		int	DppType,
		bool	isDP5_RevDxGains,
		unsigned char	DPP_ECO
	)
